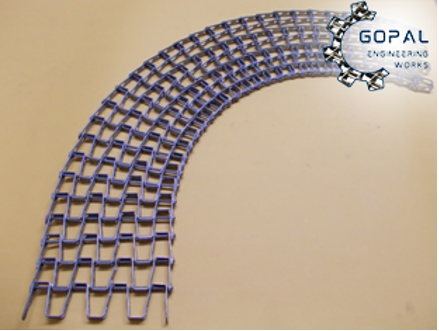

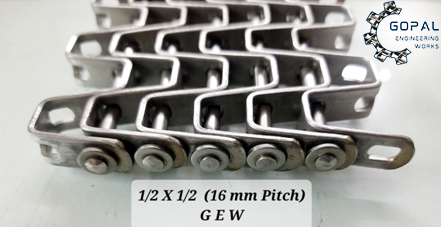

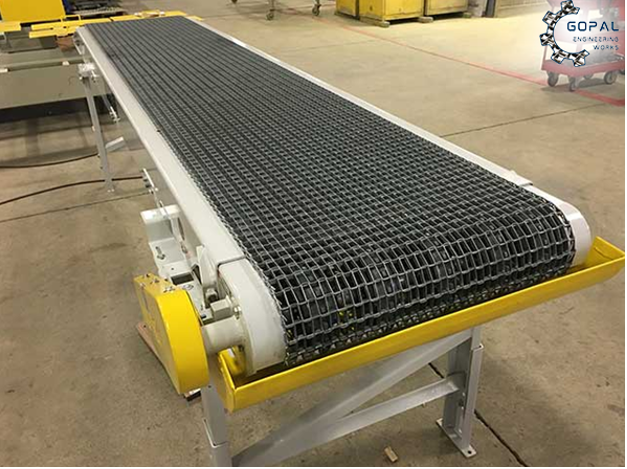

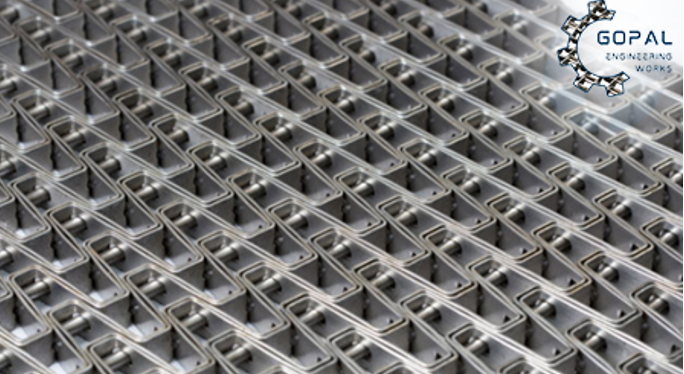

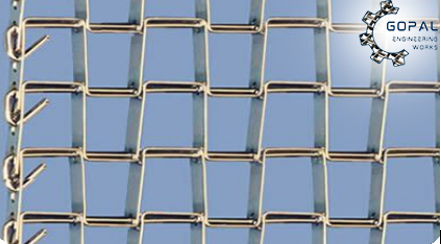

Honeycomb conveyor belt, also called flat wire conveyor belt. The honeycomb belt is constructed of cross rods and a flat metal strip.At the sides of the belt the cross rods have a welded ring (welded edges). In a number of dimensions it is possible to give the sides of the belt a clinged edge.

Honeycomb conveyor belt is a perfect products with both durability and suitable open area. It is temperature resistance, which is popular in the baking conveying applications. Honeycomb belts are used in production processes with temperatures of -30ºC up to +700ºC in food and other industries.

Details:

• Material: high carbon steel, low carbon galvanized steel, stainless steel , 304, 316, etc.
• Open size: 1″ × 1″, 1/2″ × 1″, 1/2″ × 1/2″, ,etc
• Belt width: 50mm to 3500mm.
• Belt speed: from less than 1 m/min to 25 m/min.
• Temperature range: -30°C to 700°C.
